焊丝校直器 JZQ适合0.8-2mm /外径22/26轮
启庞公司主营校直器、矫直机、手动矫直器、自动送料调直机、液压调直切断机、飞剪下料机、追剪开料机、铜管开料机、等一系列调直下料成型设备！

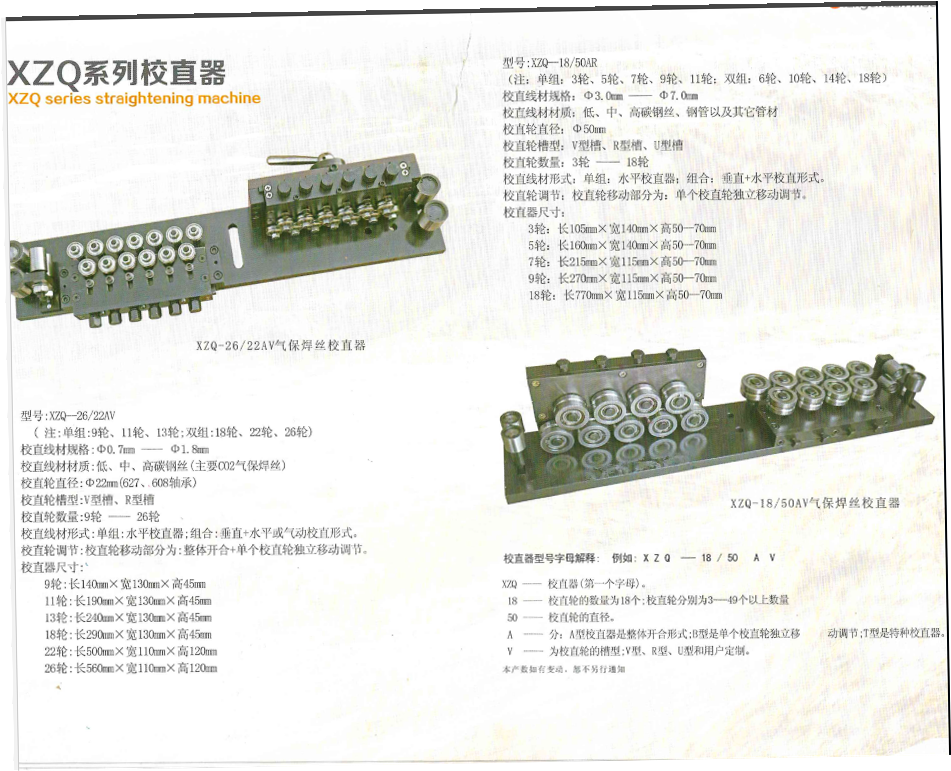

一：焊丝校直器参数
型号:JZQ--26/22AV气保焊丝专用0.8-2MM,V1.2 V1.5 U2
( 注:单组:9轮、11轮、13轮;双组:18轮、22轮、26轮) 1，校直线材规格:中0.7m.8校直线材材质:低、中、高碳钢丝(主要二氧化碳气保焊) 2，校直轮直径:中22mm(627、608轴承)校直轮槽型:V型槽、R型槽, 3，校直轮数量:9轮-26轮 4，校直线材形式:单组:水平校直器;组合:垂直+水平或气动校直形式 5，校直轮调节:校直轮移动部分为:整体开合+单个校直轮独立移动调节校6，直器尺寸:
9轮:长140mX宽130mX高45m
11轮:长190mX宽130mmX商45mm
13轮:长240mmX宽130mX高45m18轮:长290mmX宽130mmX高45em
22轮:长500mmX宽11mmX高120mm
26轮:长560mmX宽110mX 商120mm
Model :JZQ--26/22AV gas welding wire special 0.8-2MM, V1.2V1.5U2
(Note: Single group :9 rounds, 11 rounds, 13 rounds; Double sets :18, 22, 26) 1, Straightening wire specification: medium 0.7m.8 Straightening wire material: low, medium and high carbon steel wire (mainly carbon dioxide gas welding) 2, Straightening wheel diameter: medium 22mm(627, 608 bearings) Straightening wheel groove type :V groove, R groove, 3, Number of straightening wheels: 9-26 rounds 4, straightening wire form: single group: horizontal straightener; Combination: vertical + horizontal or pneumatic straightening form 5, straightening wheel adjustment: the moving part of the straightening wheel is: the whole opening and closing + a single straightening wheel independent moving adjustment 6, straightening size:
9 rounds: Length 140mX width 130mX height 45m
11 rounds: Length 190mX width 130mmX quotient 45mm
13 rounds: Length 240mmX width 130mX height 45m18 rounds: length 290mmX width 130mmX height 45em
22 wheels: Length 500mmX width 11mmX height 120mm
26 rounds: 560mm long x 110mX wide by 120mm

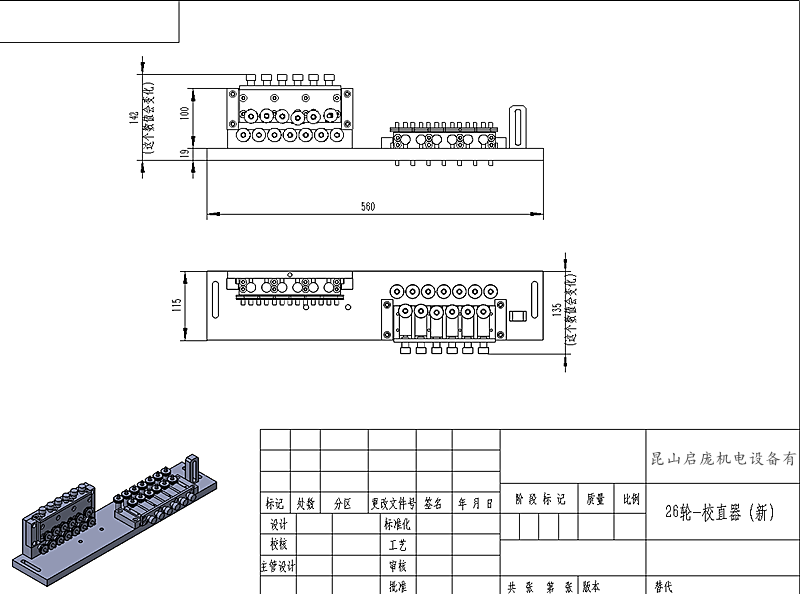

二：焊丝校直器图纸：

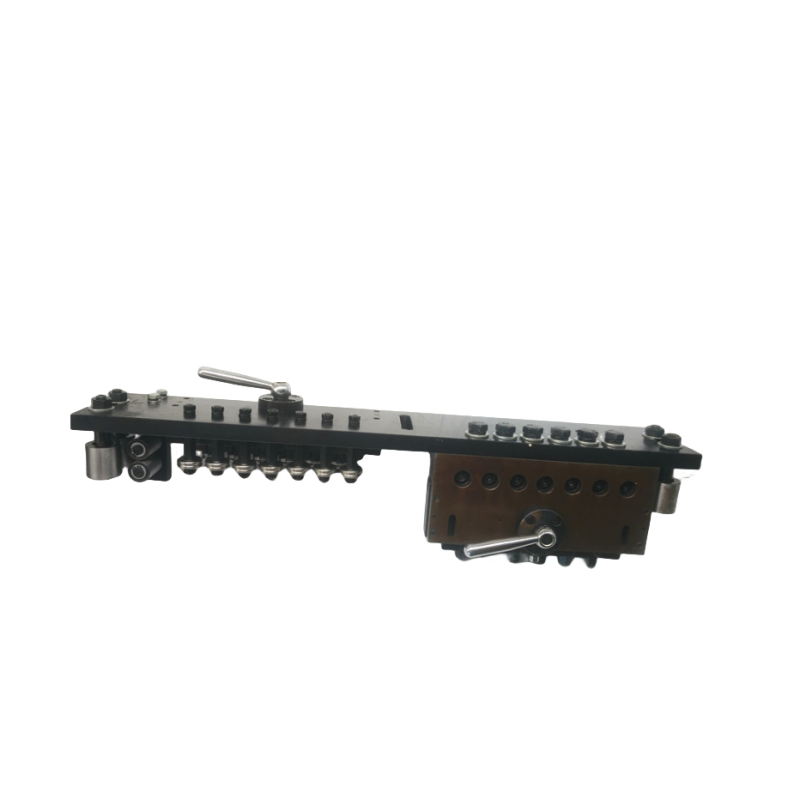

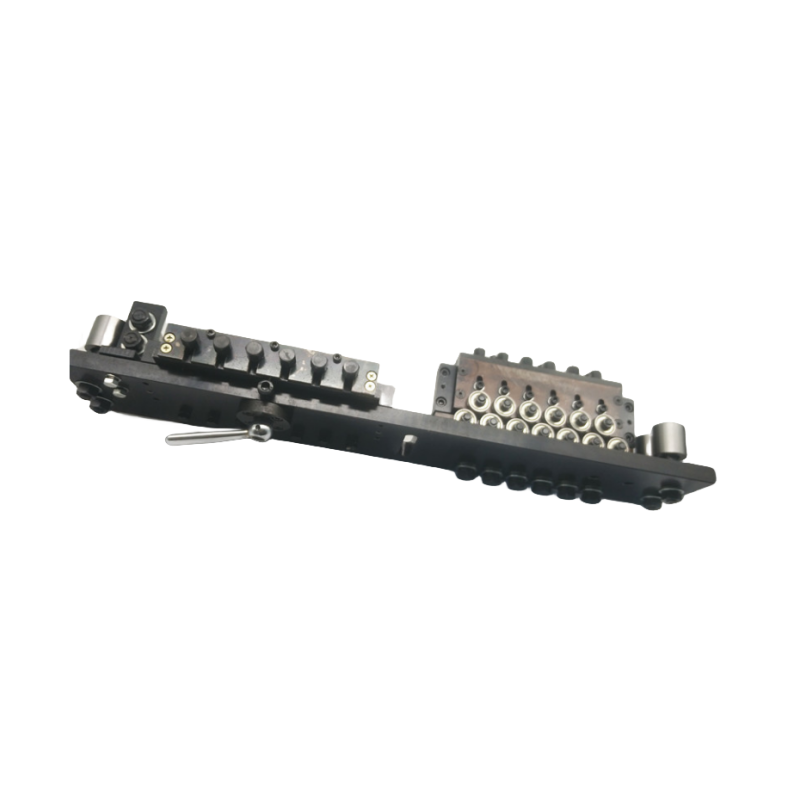

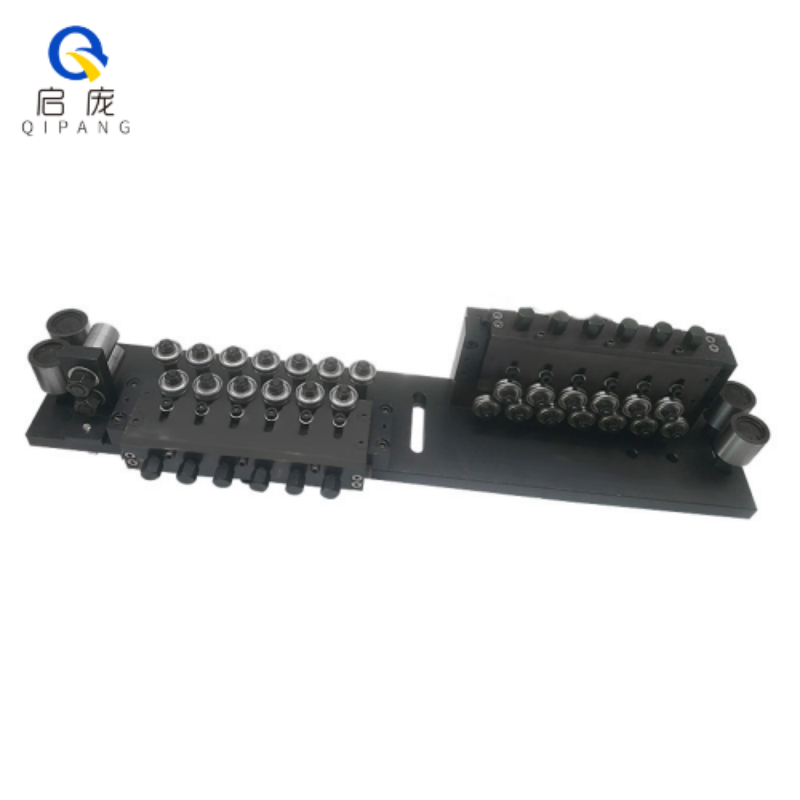

三：焊丝校直器图纸实物图展示
